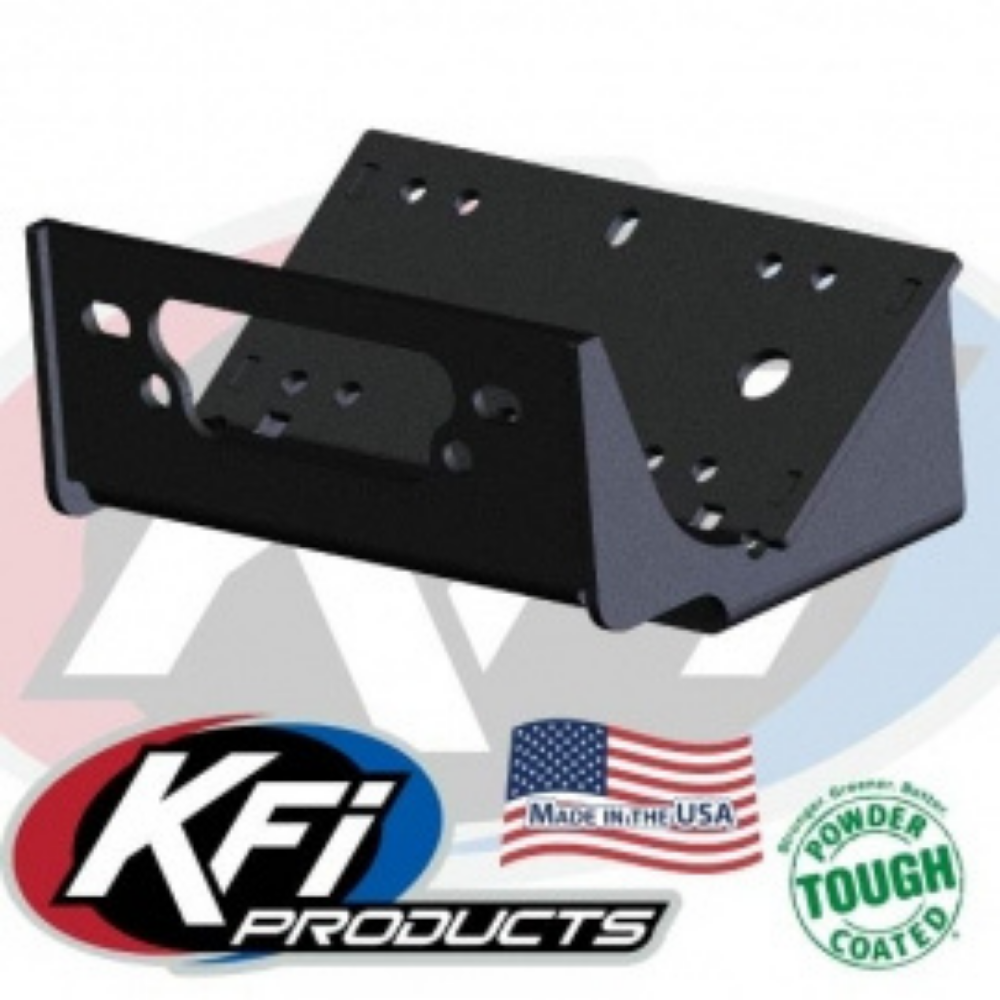

Winch Mount For Kawasaki Teryx/Teryx 4 750/800 (2014+) - KFI

Designed to work with the following winches:

OZ ARMOUR: EWX200A / EWP2500ASR / EWP2500A / EWP3500ASR
MILLER UTILITY: EWX2000A
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 (U45w-R2 and SE45w-R2 will NOT work on 2014-19 models)
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 / AS-50w
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-3000 lb (Will NOT work with Vantage 4000 due to motor lead orientation)
WARN: ProVantage 2500-4500 lb
- ProVantage 3500 and 4500 will require lead rotation.
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500/ LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500 lb #2955AT
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
CHAMPION: WIDE Winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
- Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 76 mm (3.00") x 124 mm (4.875") bolt pattern mount-up
- All with 76 mm (3.00") x 168 mm (6.600") bolt pattern mount-up
TRAVELLER:1078311 (1078311 Will NOT work on 2014-2015 models)
TRAVELLER:1078088/ 1078302
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
Possibly many others with the below standard mounting patterns:
- 4-Hole (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
- 4-Hole WIDE (76 mm [3.00"] x 168 mm [6.600"] bolt pattern with rollers that are 168 mm [6.600"] or 152 mm [6.000"] bolt pattern)
- 2-Hole (79 mm [3.10"] with rollers that are 124 mm [4.875"] bolt pattern)
QUADBOSS: RP25 / RP35

100% made in USA
Plate Constructed of 3⁄16" steel
Fairlead bracket constructed of ¼" steel
Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish
Powder coated black for supreme durability
Very easy to install
Complete installation instructions included
All mounting hardware included
Satisfaction guaranteed
Roller fairlead and winch not included

Download Winch Mount For Kawasaki Teryx/Teryx 4 750/800 (2014+) Instructions

This product fits the following vehicle models:

Kawasaki Teryx 800 LE - 2013-2020
Kawasaki Teryx S LE - 2021-2024
Kawasaki Teryx4 800 LE - 2014-2020
Kawasaki Teryx5 S LE - 2021-2024

Warranty Period: 12 Months

This product is covered by the warranty period listed above.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Refer to the following links for access to Aussie Powersports detailed Warranty Policy and Terms & Conditions of Purchase:

Click here to read Aussie Powersport's Warranty Policy

Click here to read Aussie Powersport's Term & Conditions of Purchase

SKU	101945
Brand	KFI PRODUCTS
Shipping Weight	3.3500kg
Shipping Width	0.220m
Shipping Height	0.140m
Shipping Length	0.260m
Shipping Cubic	0.008008000m3
