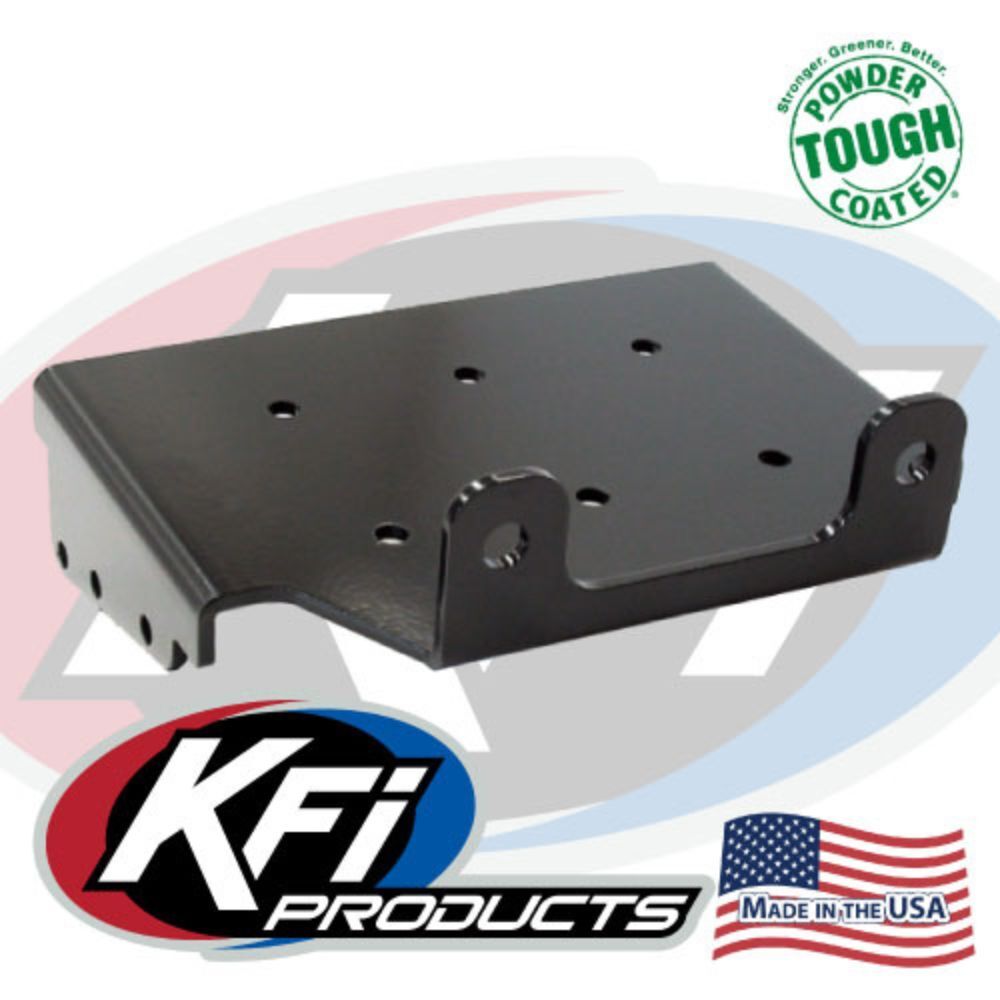

Winch Mount For Suzuki Eiger / Vinson - KFI

This KFI Winch Mount is built strong from 3⁄16" steel to keep your winch where it needs to be - on your Susuki ATV. Finished in powder coated black for supreme durability.

Designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 (Requires purchase of ATV-MR)
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: LT2000 / UT3000 / Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2500 / LT3000 / LT4000ATV / LT4000 (SR)
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500 lb #2955AT
- Requires roller fairlead with a 124 mm (4.875") bolt pattern; available if needed #ATV-RF.
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 124 mm (4.875") bolt pattern; available if needed #ATV-RF.
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 124 mm (4.875") bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
Traveller: 1078088 / 1078302
- Requires roller fairlead with a 124 mm (4.875") bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns, call to confirm:
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
- 2-Hole (79 mm [3.10"] with rollers that are 124 mm [4.875"] bolt pattern)
QUADBOSS: RP25 / RP35

Features

Constructed of 3⁄16" steel
Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep
Powder coated black for supreme durability
Very easy to install
Complete installation instructions included
All mounting hardware included
Satisfaction guaranteed
Roller fairlead and winch not included
100% made in USA

Download Winch Mount For Suzuki Eiger / Vinson - KFI Fitting Instructions

Tihs product fits the following vehicle models:

Susuki Eiger 400 Auto 4WD - 2002-2008
Susuki Eiger 400 Manual 2WD - 2002-2007
Susuki Eiger 400 Manual 4WD - 2004-2007
Susuki Vinson 500 Auto 4WD - 2000-2008
Susuki Vinson 500 Manual 4WD - 2003-2007

Warranty Period: 12 Months

This product is covered by the warranty period listed above.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Refer to the following links for access to Aussie Powersports detailed Warranty Policy and Terms & Conditions of Purchase:

Click here to read Aussie Powersport's Warranty Policy

Click here to read Aussie Powersport's Term & Conditions of Purchase

SKU	100555
Brand	KFI PRODUCTS
Shipping Weight	2.4000kg
Shipping Width	0.210m
Shipping Height	0.110m
Shipping Length	0.260m
Shipping Cubic	0.006006000m3
