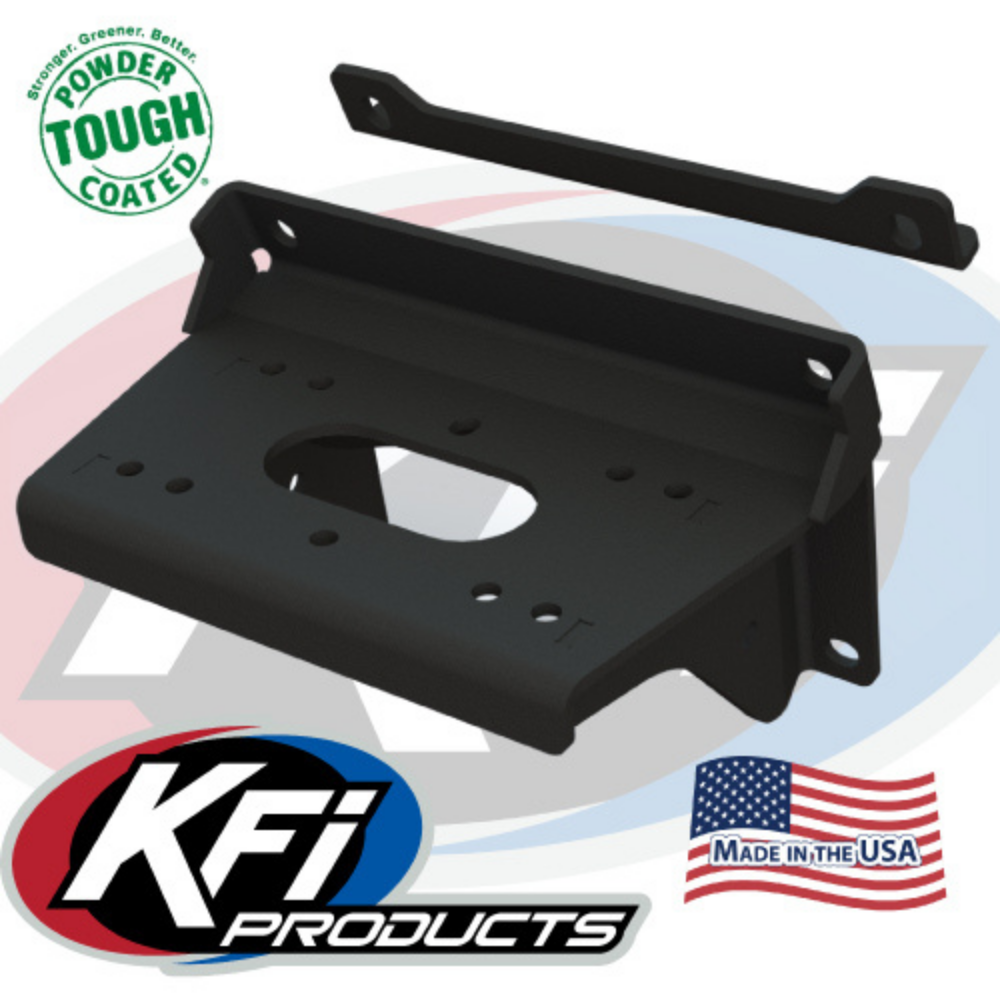

Winch Mount For Kawasaki Mule Pro FX DX FXT DXT 2015+ - KFI

Designed to work with the following winches:

OZ ARMOUR: EWX2000A / EWP2500A / EWP2500ASR / EWP3500ASR / RISE45 / RISE45ASR
MILLER UTILITY: EWP3500A
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- Requires Standard KFI fairlead bracket #100495.
WARN: VRX 45 / VRX 45-S
- Requires Wide KFI fairlead bracket #100695.
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-4000 lb
WARN: ProVantage 2500-4500 lb
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND 2-Hole Winches: 68146 / 61258 / 61297 / 61840
BADLAND Standard Winches: 68145 / 61604 / 61257 / 61383
BADLAND WIDE Winches: 61384 / 68144 / 61605
CHAMPION 2-Hole Winches: 10028 / 10032 /12001 /12002 /12003 /12004 /13001 /13005 /100127 /C20049 /C20051 /C20249 /C30045 /C30145
CHAMPION Standard Winches: 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
CHAMPION WIDE Winches: 14008 / 14501 / 14551 / 14552 / 40252
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 124 mm (4.875") bolt pattern..
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
- Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
- 4-Hole Standard (76 mm [3.00"] x 124 mm (4.875") bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 76 mm (3.00") x 124 mm (4.875") bolt pattern mount-up
- All with 76 mm (3.00") x 168 mm (6.600") bolt pattern mount-up
TRAVELLER: 1078311
TRAVELLER: 1078088 / 1078302
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
Possibly many others with the below standard mounting patterns -
- 4-Hole (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
- 4-Hole WIDE (76 mm [3.00"] x 168 mm [6.600"] bolt pattern with rollers that are 168 mm [6.600"] or 152 mm [6.000"] bolt pattern)
- 2-Hole (79 mm [3.10"] with rollers that are 124 mm [4.875"] bolt pattern)
QUADBOSS: RP25 / RP35

100% made in USA
Constructed of 3⁄16" steel
Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish
Powder coated black for supreme durability
Very easy to install
Complete installation instructions included
All mounting hardware included
Satisfaction guaranteed
Roller fairlead and winch not included

FITTING NOTES

Requires Wire Extension Kit SKU UTV-WEK

Download Kawasaki Mule Pro FX DX FXT DXT Winch Mount 2015+ Instructions

This product fits the following vehicle models:

Kawasaki Mule Pro-DX EPS - 2016-2024
Kawasaki Mule Pro-DXT EPS - 2016-2024
Kawasaki Mule Pro-FX - 2017-2024
Kawasaki Mule Pro-FX 1000 - 2023-2024
Kawasaki Mule Pro-FXT - 2020-2024
Kawasaki Mule Pro-FXT 1000 - 2023-2024
Kawasaki Mule Pro-FXT EPS LE - 2014-2019

Warranty Period: 12 Months

This product is covered by the warranty period listed above.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Refer to the following links for access to Aussie Powersports detailed Warranty Policy and Terms & Conditions of Purchase:

Click here to read Aussie Powersport's Warranty Policy

Click here to read Aussie Powersport's Term & Conditions of Purchase

SKU	101230
Brand	KFI PRODUCTS
Shipping Weight	4.0000kg
Shipping Width	0.190m
Shipping Height	0.200m
Shipping Length	0.290m
Shipping Cubic	0.011020000m3
