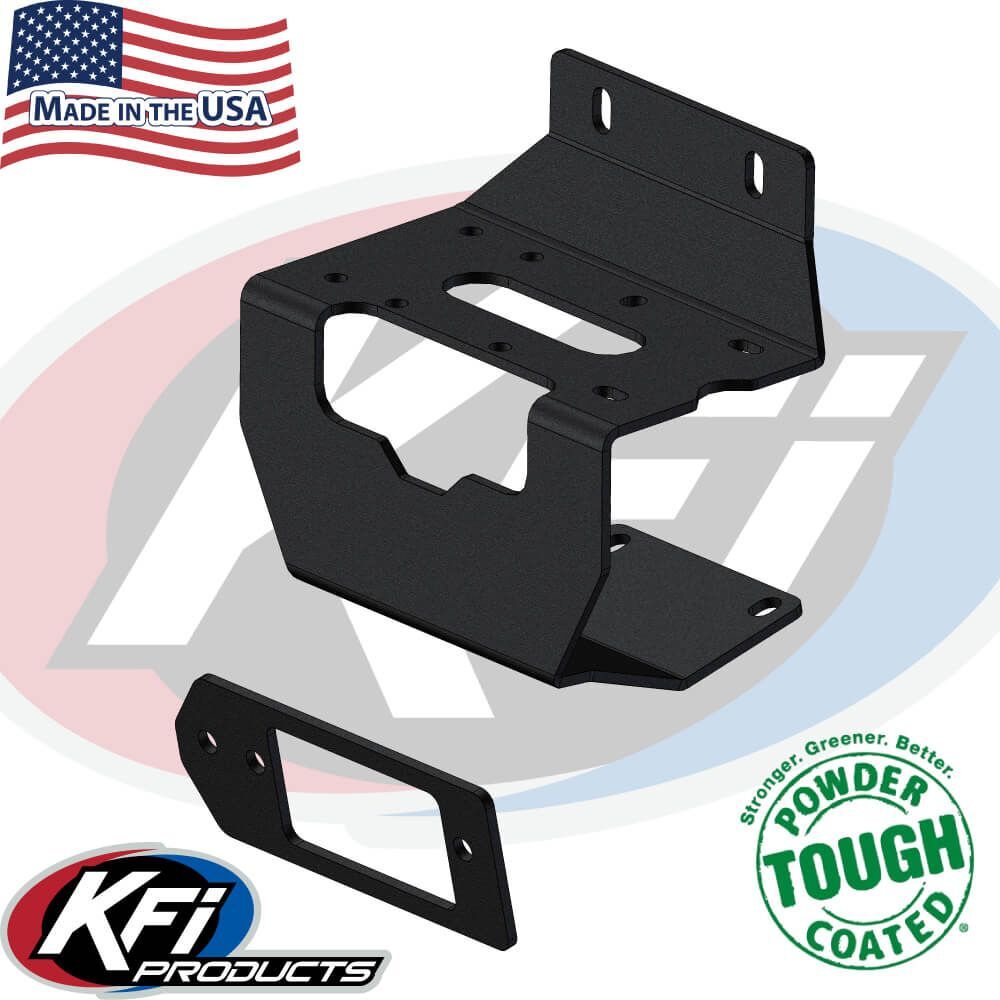

Winch Mount For Honda Pioneer 1000 - KFI (16-25)

Designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: AXON 35 / AXON 35-S / AXON 45RC
WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-4000 lb
WARN: ProVantage 2500-4500 lb
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 / PE5000
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
CHAMPION: WIDE Winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 124 mm (4.875") bolt pattern; available if needed #ATV-RF.
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 124 mm (4.875") bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 76 mm (3.00") x 124 mm (4.875") bolt pattern mount-up
- All with 76 mm (3.00") x 168 mm (6.600") bolt pattern mount-up
Traveller: 1078311
Traveller: 1078088 / 1078302
- Requires roller fairlead with a 124 mm (4.875") bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns, call to confirm:
- 4-Hole (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
- 4-Hole WIDE (76 mm [3.00"] x 168 mm [6.60"] bolt pattern with rollers that are 168 mm [6.600"] or 152 mm [6.000"] bolt pattern)
- 2-Hole (79 mm [3.10"] with rollers that are 124 mm [4.875"] bolt pattern)
QUADBOSS: RP25 / RP35

Replaces older style KFI Mount #101285
- improved cable angle out of the stock bumper
- Simpler install
Winch is mounted upside down for better cable angle out of the rollers
Constructed of 3⁄16" steel
Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish
Powder coated black for supreme durability
Very easy to install
Complete installation instructions included
All mounting hardware included
Satisfaction guaranteed
Roller fairlead and winch not included
100% made in USA

Download Honda Pioneer 1000 Winch Mount Fitting Instructions

This product fits the following vehicle models:

Honda Pioneer 1000 - 2015-2024
Honda Pioneer 1000 LE - 2017-2019
Honda Pioneer 1000-5 - 2016-2024
Honda Pioneer 1000-6 - 2024

Warranty Period: 12 Months

This product is covered by the warranty period listed above.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Refer to the following links for access to Aussie Powersports detailed Warranty Policy and Terms & Conditions of Purchase:

Click here to read Aussie Powersport's Warranty Policy

Click here to read Aussie Powersport's Term & Conditions of Purchase

SKU	101965
Brand	KFI PRODUCTS
Shipping Weight	3.3000kg
Shipping Width	0.240m
Shipping Height	0.180m
Shipping Length	0.240m
Shipping Cubic	0.010368000m3
