Designed to work with the following Winches:

  • OZ ARMOUR: EWX2000A / EWP2500A / EWP2500ASR / EWP3500ASR
  • MILLER UTILITY: EWP3500A
  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
  • KFI: AM-25 / AM-35 / AS-25 / AS-35
  • KFI: AS-50 / AS-50w
  • WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
    • Requires Standard KFI fairlead bracket #101715.
  • WARN: VRX 45 / VRX 45-S
    • Requires Wide KFI fairlead bracket #100695.
  • WARN: AXON 35 / AXON 35-S / AXON 45RC
    • Requires Standard KFI fairlead bracket #101715.
  • WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
    • Requires Wide KFI fairlead bracket #100695.
  • WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN: RT40 / XT40
  • WARN: Vantage 2000-4000 lb
  • WARN: ProVantage 2500-4500 lb
  • RAMSEY: ATV2500 / ATV3000
  • SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
  • MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND 2-Hole Winches: 68146 / 61258 / 61297 / 61840
  • BADLAND Standard Winches: 68145 / 61604 / 61257 / 61383
  • BADLAND WIDE Winches: 61384 / 68144 / 61605
  • CHAMPION 2-Hole Winches: 10028 / 10032 /12001 /12002 /12003 /12004 /13001 /13005 /100127 /C20049 /C20051 /C20249 /C30045 /C30145
  • CHAMPION Standard Winches: 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
  • CHAMPION WIDE Winches: 14008 / 14501 / 14551 / 14552 / 40252
  • KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER: KT2000
    • Requires roller fairlead with a 124 mm (4.875") bolt pattern.
  • SMITTYBILT: XRC 2.0
    • Requires roller fairlead with a 124 mm (4.875") bolt pattern.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT: XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 76 mm (3.00") x 124 mm (4.875") bolt pattern mount-up.
    • All with 76 mm (3.00") x 168 mm (6.600") bolt pattern mount-up.
  • TRAVELLER: 1078311
  • TRAVELLER: 1078088 / 1078302
    • Requries roller fairlead with a 124 mm (4.875") bolt pattern.
  • Possibly many others with the below standard mounting patterns -
    • 4-Hole (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
    • 4-Hole WIDE (76 mm [3.00"] x 168 mm [6.600"] bolt pattern with rollers that are 168 mm [6.600"] or 152 mm [6.000"] bolt pattern)
    • 2-Hole (79 mm [3.10"] with rollers that are 124 mm [4.875"] bolt pattern)
  • QUADBOSS: RP25 / RP35

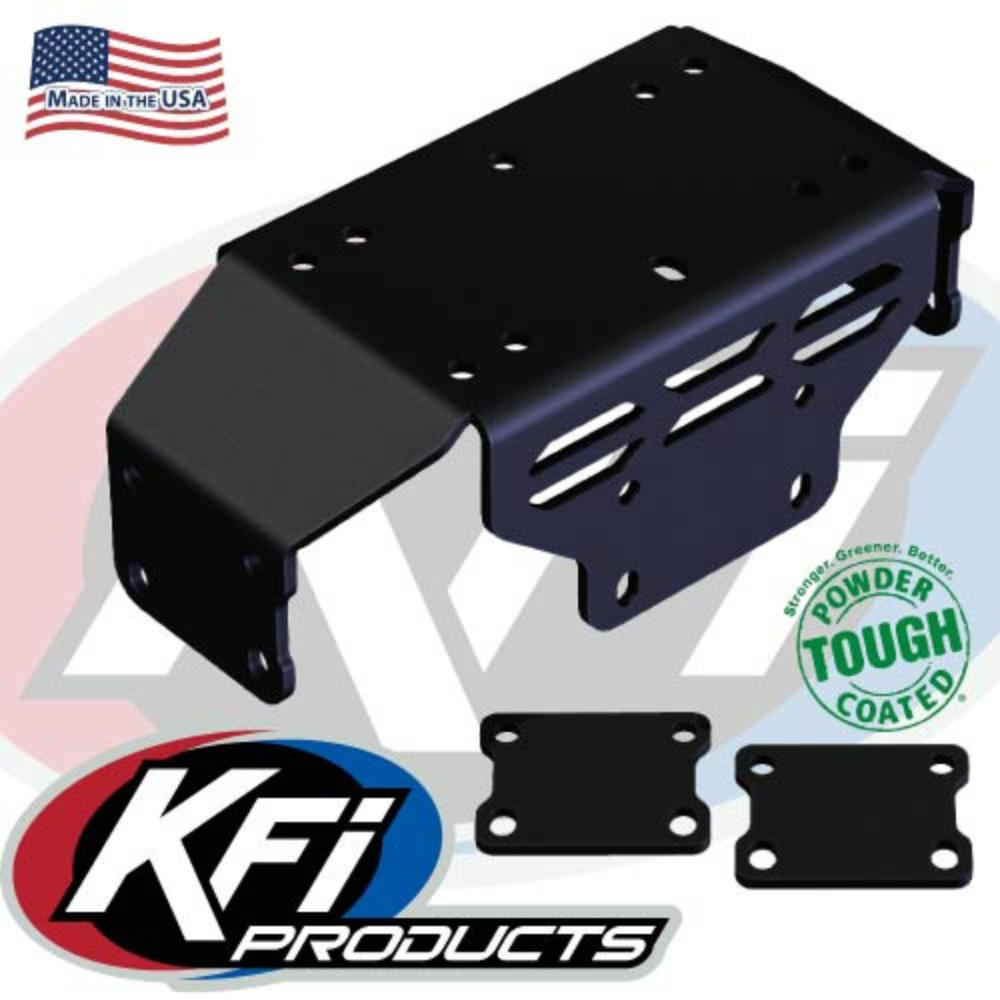

  • 100% made in USA
  • Mounted up higher to keep it out of the elements and allow it to fit larger winches
  • Constructed of 3⁄16" steel
  • Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish
  • Powder coated black for supreme durability
  • Very easy to install
  • Complete installation instructions included
  • All mounting hardware included
  • Satisfaction guaranteed
  • Roller fairlead and winch not included

Download Honda Pioneer 500 Winch Mount Instructions

This product fits the following vehicle models:

  • Honda Pioneer 500 - 2014-2021
  • Honda Pioneer 520 - 2021-2024
  • Honda Pioneer 700 - 2014-2024
  • Honda Pioneer 700-4 - 2014-2024

Warranty Period: 12 Months

This product is covered by the warranty period listed above.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Refer to the following links for access to Aussie Powersports detailed Warranty Policy and Terms & Conditions of Purchase:

Click here to read Aussie Powersport's Warranty Policy

Click here to read Aussie Powersport's Term & Conditions of Purchase

SKU 101215
Brand KFI PRODUCTS
Shipping Weight 3.3000kg
Shipping Width 0.170m
Shipping Height 0.160m
Shipping Length 0.310m
Shipping Cubic 0.008432000m3
