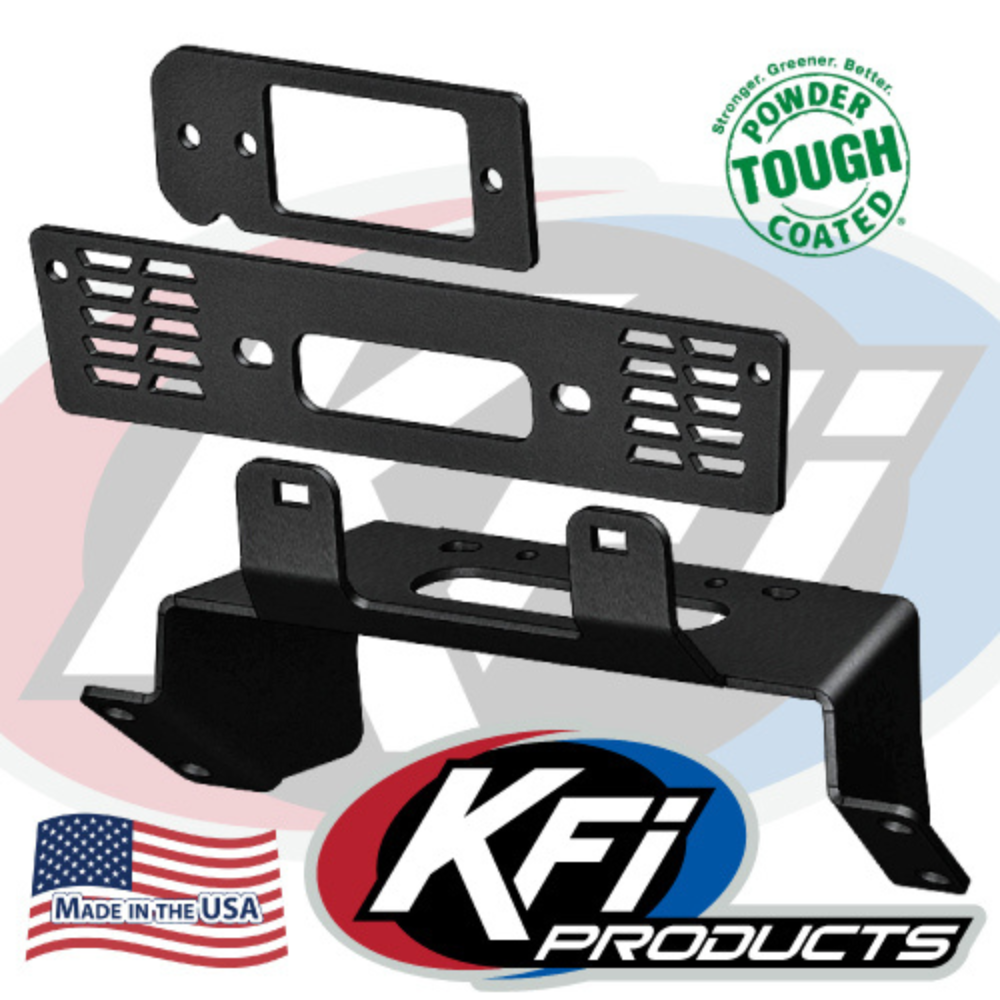

Winch Mount For Can Am Maverick (13-18) - KFI

Designed to work with the following winches:

OZ ARMOUR: EWX2000A / EWP2500A / EWP2500ASR / EWP3500ASR / RISE45 / RISE45ASR
MILLER UTILITY: EWP3500A
KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
WARN: Vantage 4000 lb / Provantage 4500 lb
RAMSEY: ATV2500 / ATV3000
SUPERWINCH :Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500 lb #2955AT
- Requires fairlead with a 124 mm (4.875") bolt pattern.
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
- Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 76 mm (3.00") x 124 mm (4.875") bolt pattern mount-up
- All with 76 mm (3.00") x 168 mm (6.600") bolt pattern mount-up
TRAVELLER: 1078088/ 1078302
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
Possibly many others with the below standard mounting patterns -
- 4-Hole (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
- 4-Hole WIDE (76 mm [3.00"] x 168 mm [6.600"] bolt pattern with rollers that are 168 mm [6.600"] or 152 mm [6.000"] bolt pattern)
- 2-Hole (79 mm [3.10"] with rollers that are 124 mm [4.875"] bolt pattern)
QUADBOSS: RP25 / RP35

100% made in USA
Constructed of 3⁄16" steel
Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish
Powder coated black for supreme durability
Complete installation instructions included
All mounting hardware included
Roller fairlead and winch not included

FITTING NOTES

If fitting to the following models, a Wire Extention Kit must be purchased separately (UTV-WEK):

2014 - 2018 Maverick Max 1000R & Turbo
2014 - 2018 Maverick Max X RS 1000R
This winch mount will not work on any "X DS" or "X RS Turbo" models with aluminium front bumper (Click here for more information)

Download Can-Am Maverick Winch Mount Instructions

This product fits the following vehicle models:

Can-Am Maverick 1000 X RS - 2013-2014
Can-Am Maverick 1000 X RS DPS - 2013-2014
Can-Am Maverick 1000 X XC - 2014
Can-Am Maverick 1000R X DS Turbo - 2014-2016
Can-Am Maverick 1000R X MR - 2013-2014
Can-Am Maverick Sport X RC - 2020-2022
Can-Am Maverick Trail 800 DPS - 2018-2019
Can-Am Maverick Trail 1000 DPS - 2018-2019
