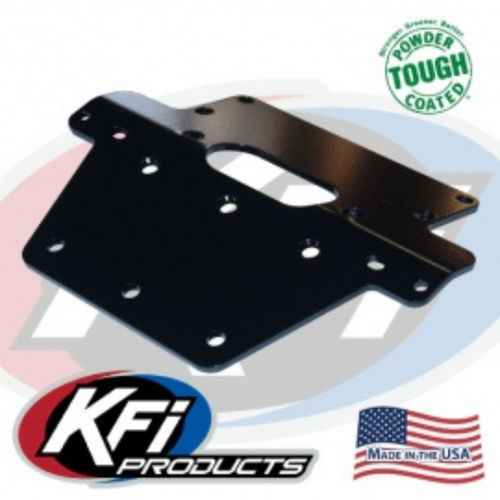

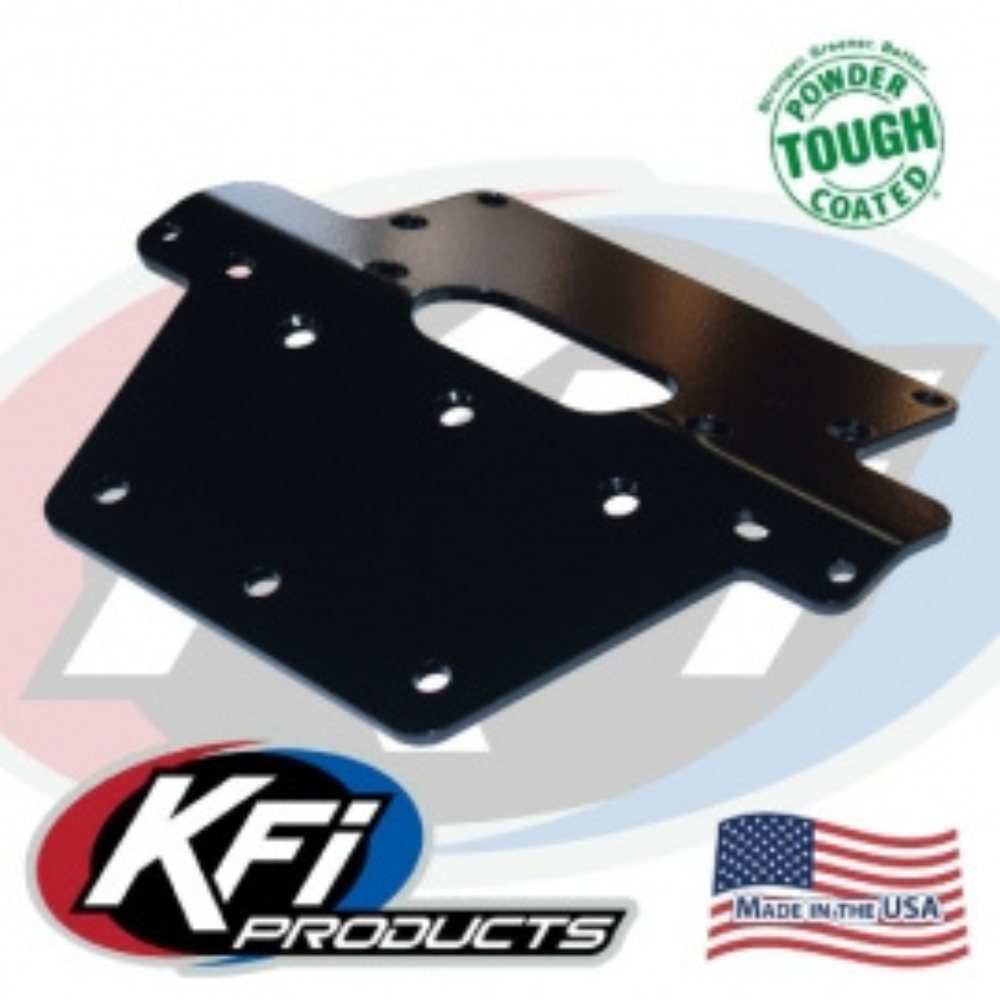

Winch Mount For Kawasaki Teryx 750 08-13 - KFI

Designed to work with the following Winches:

OZ ARMOUR: EWX2000A / EWP2500A / EWP2500ASR / EWP3500ASR
MILLER UTILITY: EWP3500A
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
WARN: Vantage 4000 lb / Provantage 4500 lb
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500 lb #2955AT
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
CHAMPION: WIDE Winches
CHAMPION: 14001 and 14061 / 14051 / 14560
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
- Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 76 mm (3.00") x 124 mm (4.875") bolt pattern mount-up.
- All with 76 mm (3.00") x 168 mm (6.600") bolt pattern mount-up.
TRAVELLER: 1078311
TRAVELLER: 1078088/ 1078302
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
Possibly many others with the below standard mounting patterns -
- 4-Hole (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
- 4-Hole WIDE (76 mm [3.00"] x 168 mm [6.600"] bolt pattern with rollers that are 168 mm [6.600"] or 152 mm [6.000"] bolt pattern)
- 2-Hole (79 mm [3.10"] with rollers that are 124 mm [4.875"] bolt pattern)
QUADBOSS: RP25 / RP35

NOTE: Will not work on the Teryx4 model.

100% made in USA
Plate Constructed of 3⁄16" steel
Fairlead bracket Constructed of ¼" steel
Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish
Powder coated black for supreme durability
Very easy to install
Complete installation instructions included
All mounting hardware included
Satisfaction guaranteed
Roller fairlead and winch not included

FITTING NOTES

Will not work on the Teryx4 model.

Download Kawasaki Teryx 750 Winch Mount (08-13) Instructions

This product fits the following vehicle models:

Kawasaki Teryx 750 Fi 4x4 - 2008-2014
Kawasaki Teryx 750 4x4 EPS Camo - 2012
