This Gear Reduction Protects Your Drivetrain

GDP Portals have a gear reduction built into the hub. Because its at the end of your drivetrain instead of in the transmission, the whole system benefits. Your axles, differential, prop shafts, and transmission will work less and wear less thanks to our portals.

Designed with Strength Throughout

SuperATV never compromise on strength. The cast and billet aluminium housings are the thickest and strongest you can get. Combine that with 8 mm (5⁄16") backing plates made from an advanced steel alloy, and our portals are unstoppable.

  • The housings are reinforced for gear retention and optimised for oil flow
  • Advanced steel alloy backing plates are stronger than chromoly
  • Enhance with Portal Blood — gear oil formulated for GDP Portals
  • There are no gimmicks and no vents because vents do more harm than good — we know because we tested them
Advanced Gaskets, Seals, and Bearings.

These portals use:

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • A sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout so you can forget about oil leaks

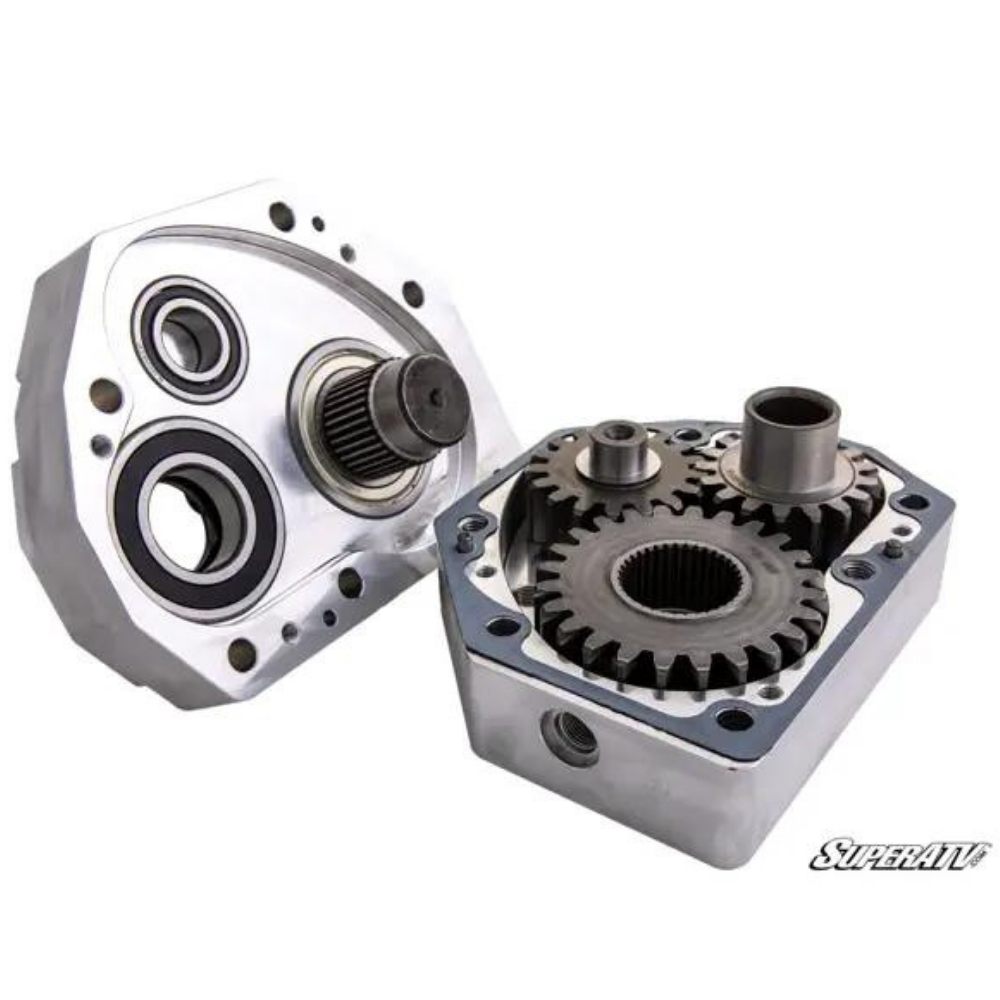

  • Double-angular contact output bearings to prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing
Protect Your Pioneer with a Frame Stiffener

When you add portals, bigger tyres, and start getting a little heavy on the throttle, you can tweak your Pioneers frame. To stay confident while you put pedal to the metal, consider adding a SuperATV Frame Stiffener when installing your new portals.

4" Portal Gear Lift Includes:

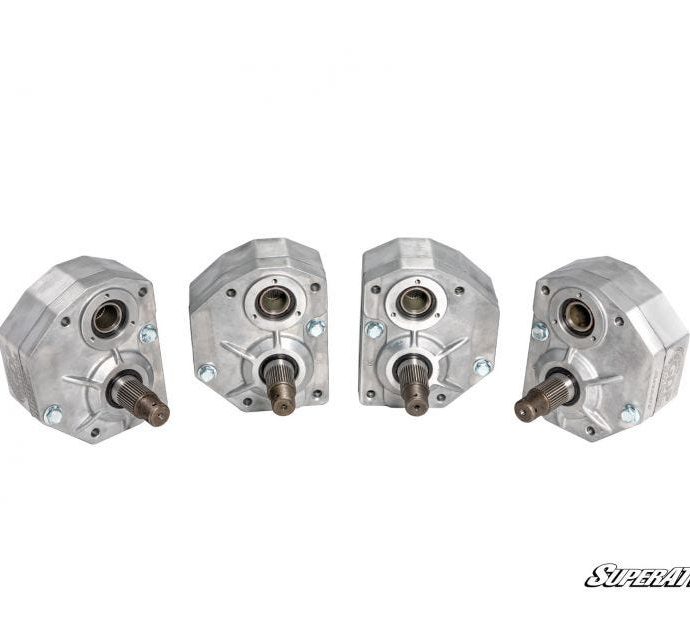

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialised steel alloy backing plates
  • (4) Steel caliper mounting plates
  • (2) Caliper adapter plates
  • (2) Steel steering arms
  • Extended brake lines
  • All required hardware, including recessed castle nut socket
Max Tyre Size Required Suspension Setup with GDP Portals
27" Stock
27" 3" (76 mm) Lift Kit
30" 1.5" (38 mm) Forward Front A-Arms
30" 1.5" (38 mm) Forward Front A-Arms and 3" (76 mm) Lift Kit
34" 6" (152 mm) Lift Kit

If you need help figuring out which gear reduction is right for you, check out SuperATV's portal gear reduction calculator.

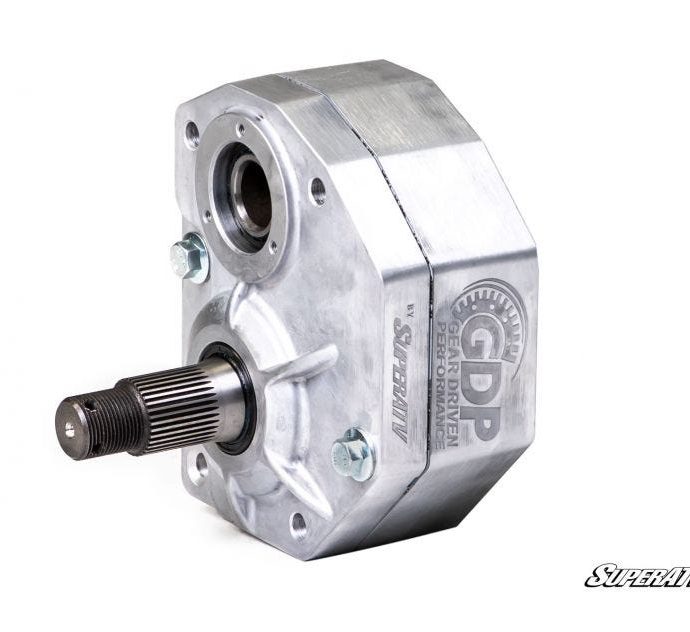

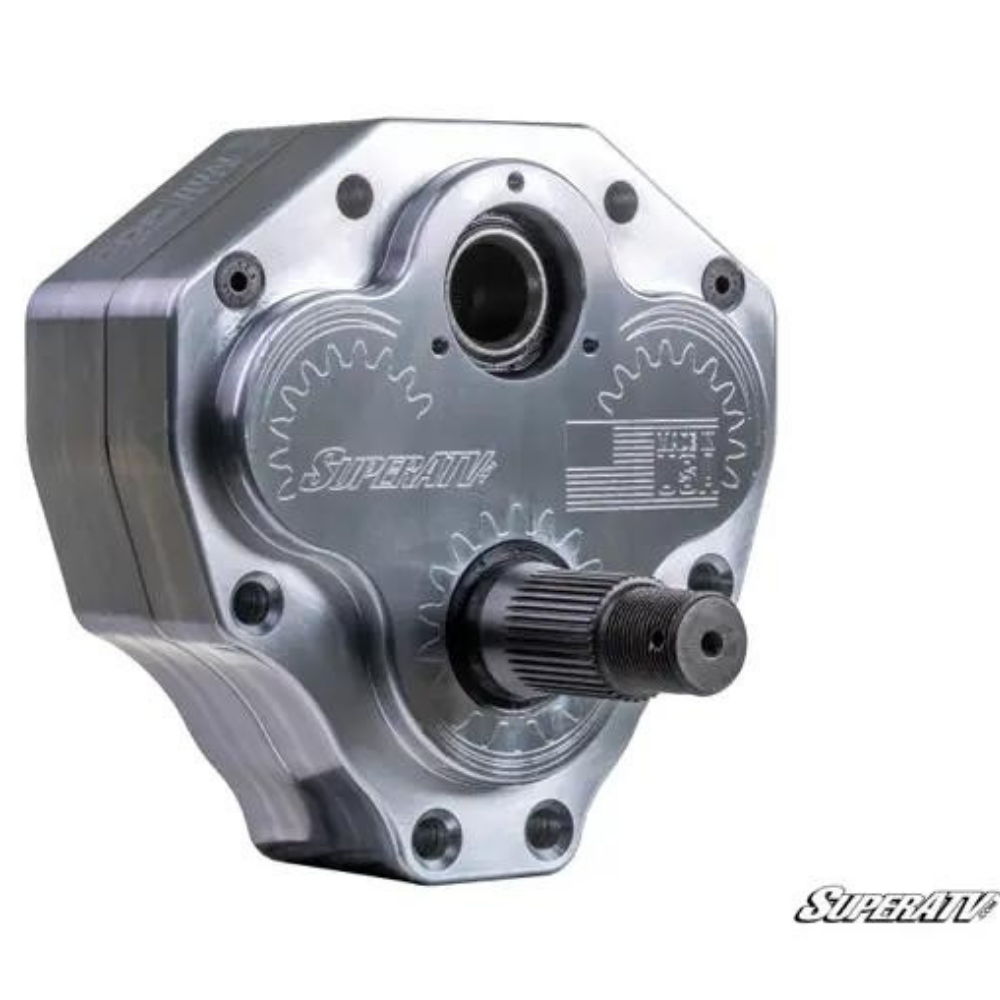

  • Available with billet or cast aluminium housing

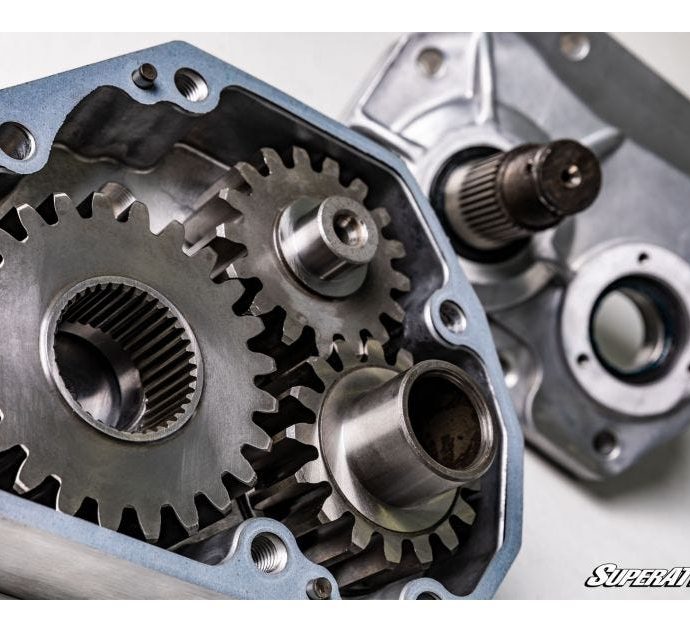

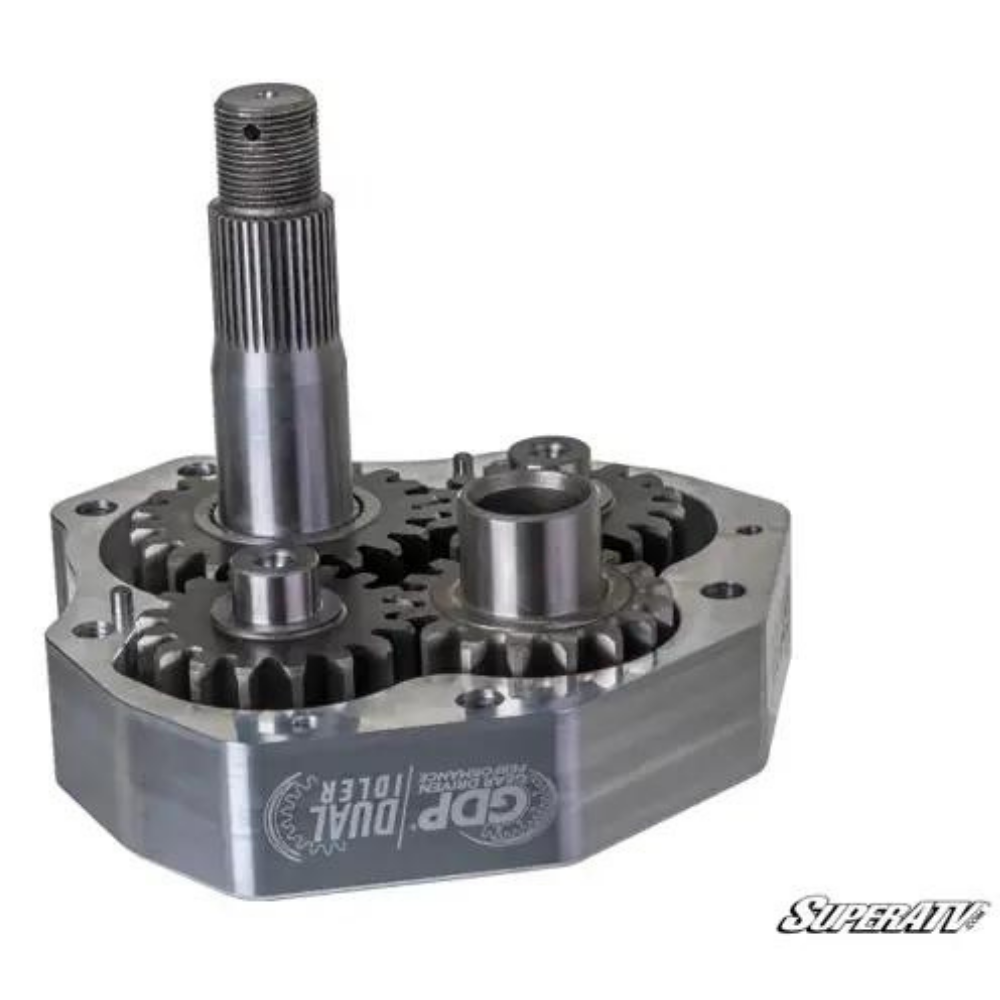

  • Dual idler gear configuration maxmises strength
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use advanced gaskets or O-rings that don't let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Dual idler gear configuration adds a 1" offset
  • Lighter than the competition



FITTING NOTES
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer.
  • 14" or larger wheel required.
  • 14" & 15" wheels cannot exceed 4-½" backspacing.
  • 16" and larger wheels cannot exceed 5" backspacing.
  • If using factory 14" wheels, you must run 1.5" wheel spacers.
  • Not compatible with dual beadlock wheels.

Download Honda Pioneer 1000 4" Portal Gear Lift Instructions

This product fits the following vehicle models:

  • Honda Pioneer 1000 - 2016-2021
  • Honda Pioneer 1000-5 - 2016-2021

Warranty Period: 12 Months

This product is covered by the warranty period listed above.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Refer to the following links for access to Aussie Powersports detailed Warranty Policy and Terms & Conditions of Purchase:

Click here to read Aussie Powersport's Warranty Policy

Click here to read Aussie Powersport's Term & Conditions of Purchase

Important Note:
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.

SKU PGH-3-64-152-FS
Brand SUPERATV

NEED SOME HELP WITH INSTALLATION?

Most of our products come shipped with installation instructions. But we know sometimes things can be a little trickier than they seem. If you need some assistance installing this product, drop us a line and one of our friendly staff can give you some advice.
